LYSAGHT® TRIMMAX®

LYSAGHT® TRIMMAX®

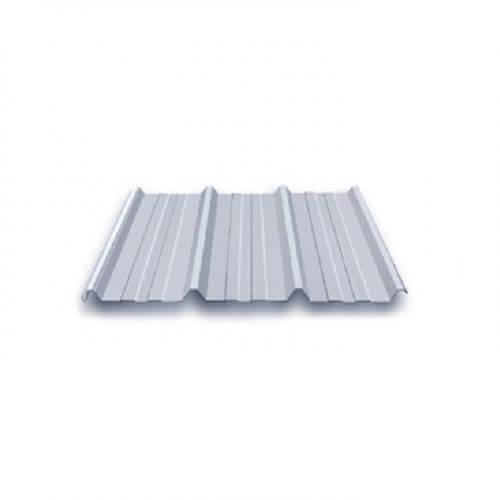

LYSAGHT® TRIMMAX® is a  trapezoidal multi-ribbed profile with subtle longitudinal flutes on the pan.  It is generally used where an inexpensive, quick to install roof and wall cladding is needed. It is suitable for a greater range of application including roof and wall cladding.

Made from high-strength steel sheets, it has an attractive profile with sturdy ribs along the length, the product’s excellent load capacity plus extra width make it a material of choice for a number of uses including partition and walling. This profile can be installed both vertically and horizontally. It is well suited for small sheds such as garages, screens and fascias.



Nominal cover width:825mm
Rib Height:22mm
Minimum roof slope:



BlueScope COLORBOND® and ZINCALUME®
Coating Mass:AZ150
Thickness:0.42mm, 0.55mm BMT
Steel Grade:G550


Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.
