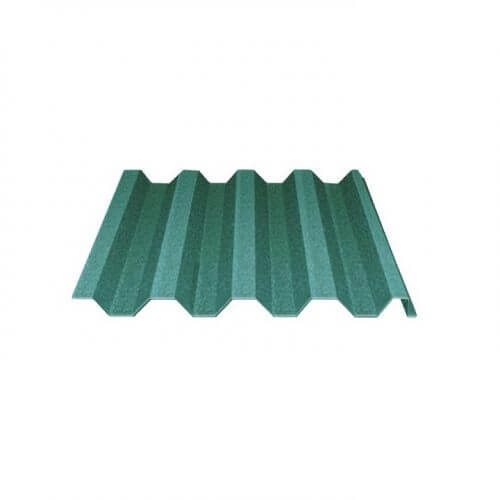

LYSAGHT® HR-29® is symmetrical trapezoidal profile suitable for roof and wall applications where a deeper bolder contemporary appearance and superior strength is required. A pierced fixed prime quality steel profile, LYSAGHT® HR-29® is a structural engineer’s preferred choice on account of its superior structural properties per unit weight of steel used. LYSAGHT® HR-29® allows for longer spans, faster installation and cost-effective.
LYSAGHT® HR-29® can also be used for projects requiring Diaphragm Action by the roof sheets where the profile’s structural strength is fully utilised in the structural stability of the structure.
| Nominal cover width: | 730mm |
| Rib Height: | 38mm |
| Minimum roof slope: | 3° |
| Coating Mass: | AZ150 |
| Thickness: | 0.42mm, 0.55mm BMT |
| Steel Grade: | G550 |
Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.

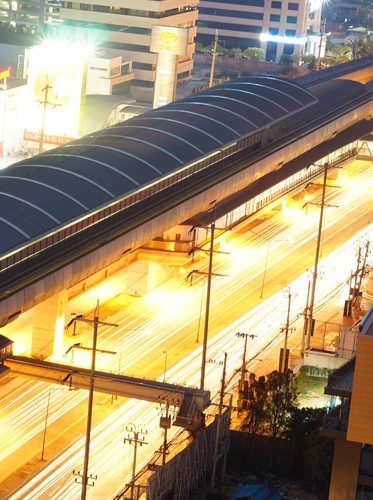

NS BlueScope Thailand supplied roofing solutions for the construction of highly-anticipated MRT Line.
