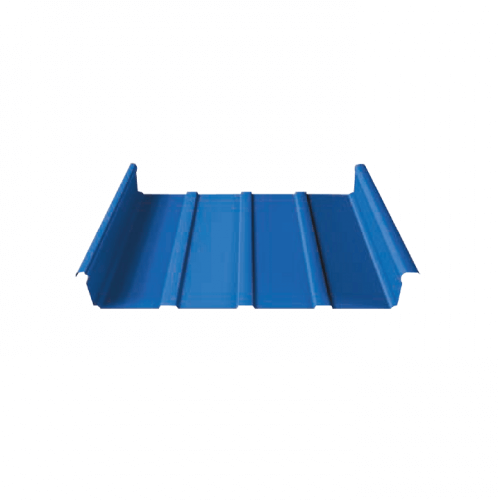

Versatile structural standing seam roof system with a bold high-rib profile suitable for sophisticated roof geometries requiring tapered and curved panels. Mechanically field seamed on specially designed concealed fix clips for exceptional weather-tightness and strength.
| Nominal cover width: | std 300mm, 400mm, 500mm |
| Tapered: | range 250-600mm |
| Rib Height: | 65mm |
| Minimum roof slope: | 2° |
| Coating Mass: | AZ150 |
| Thickness: | 0.55mm, 0.80mm BMT |
| Steel Grade: | G300 |
| Aluminum: | 0.70 - 1.20mm |
Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.

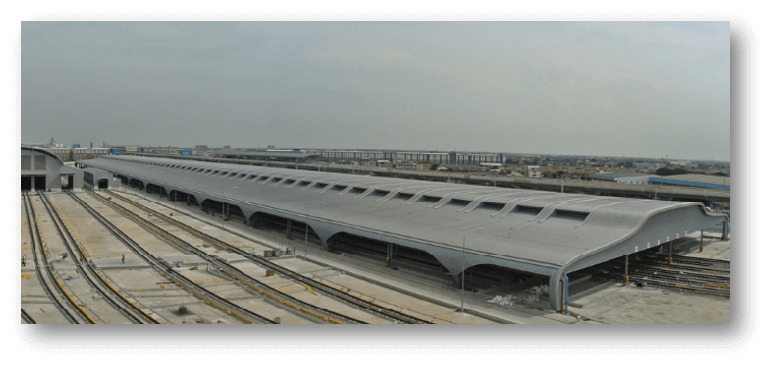

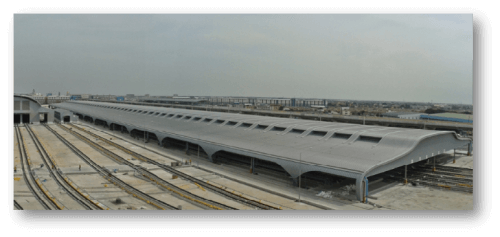

The Electrical Train Purple Line Project Maintenance Center sports a stylish design that calls for modern curve levels; which is why Lysaght solutions were chosen to fit into its unique architectural design.
Baan Fai Rim Ping uses materials that are harmonious with the surrounding nature and comes with clear space design which allows optimal air flow.

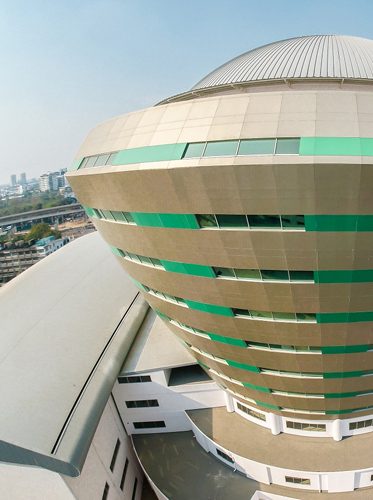

The new Yothinburana school is fully provided with state-of-the-art equipment which will give the school with the potential to step into the international quality standard level.
