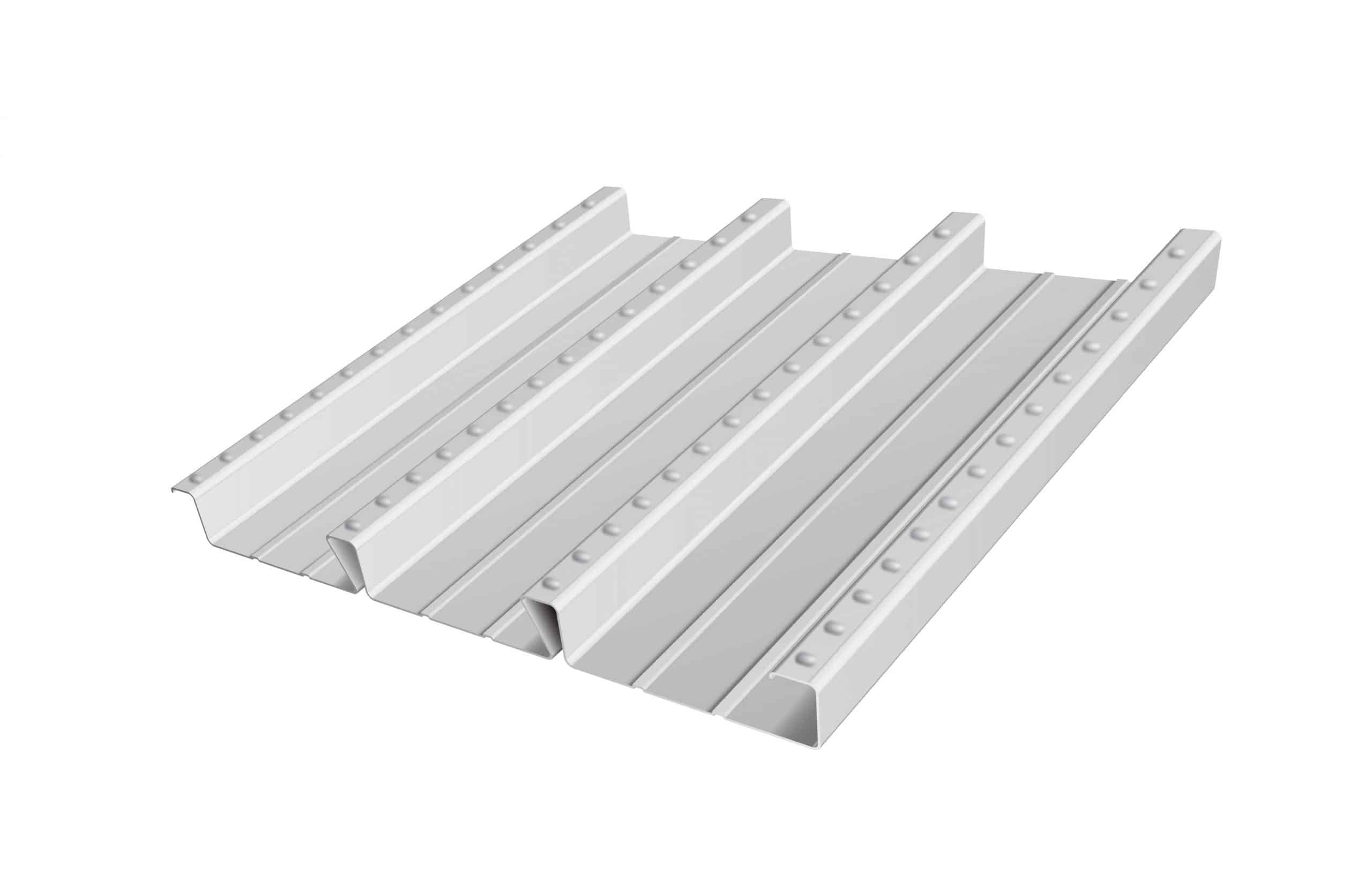

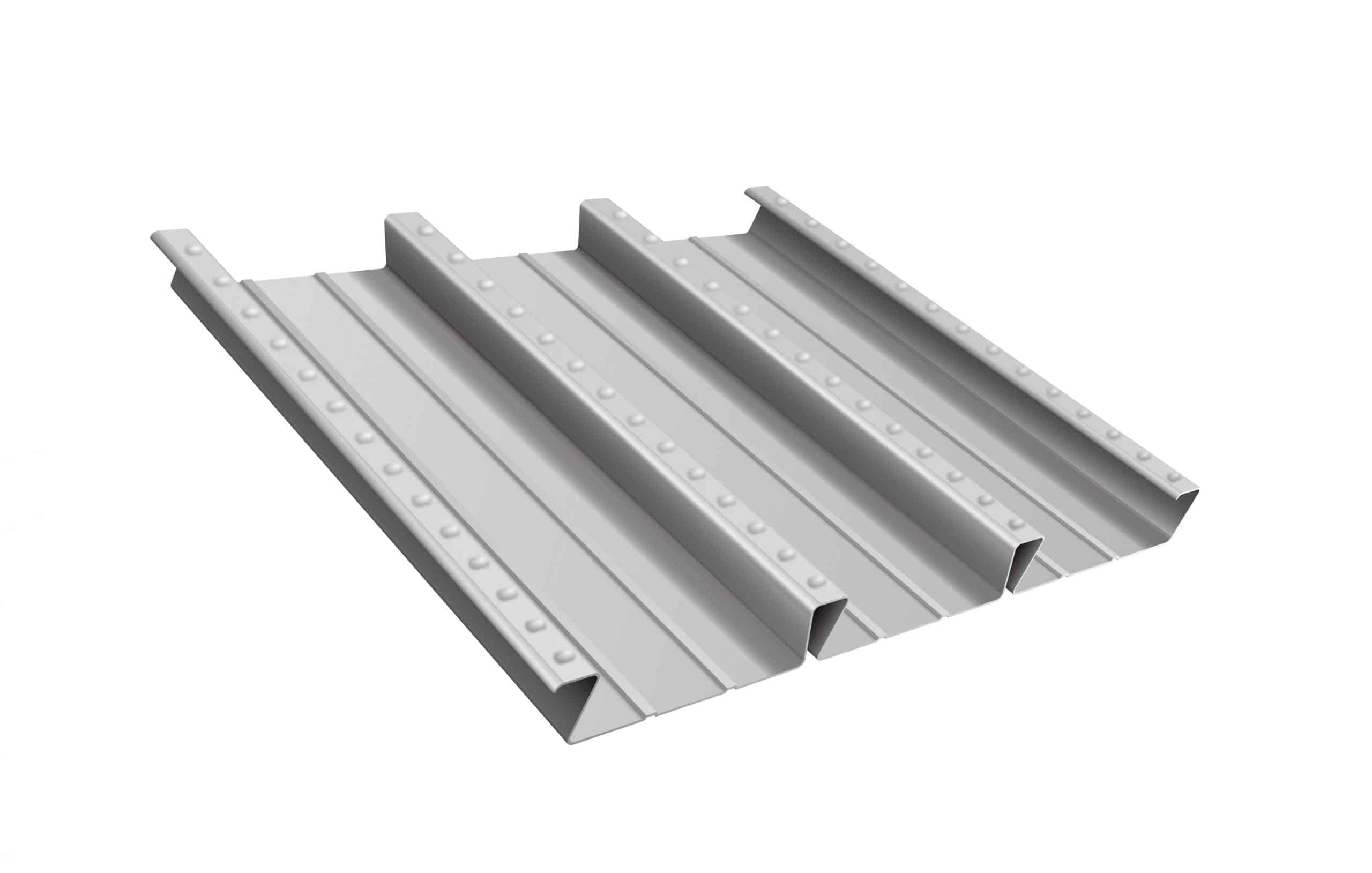

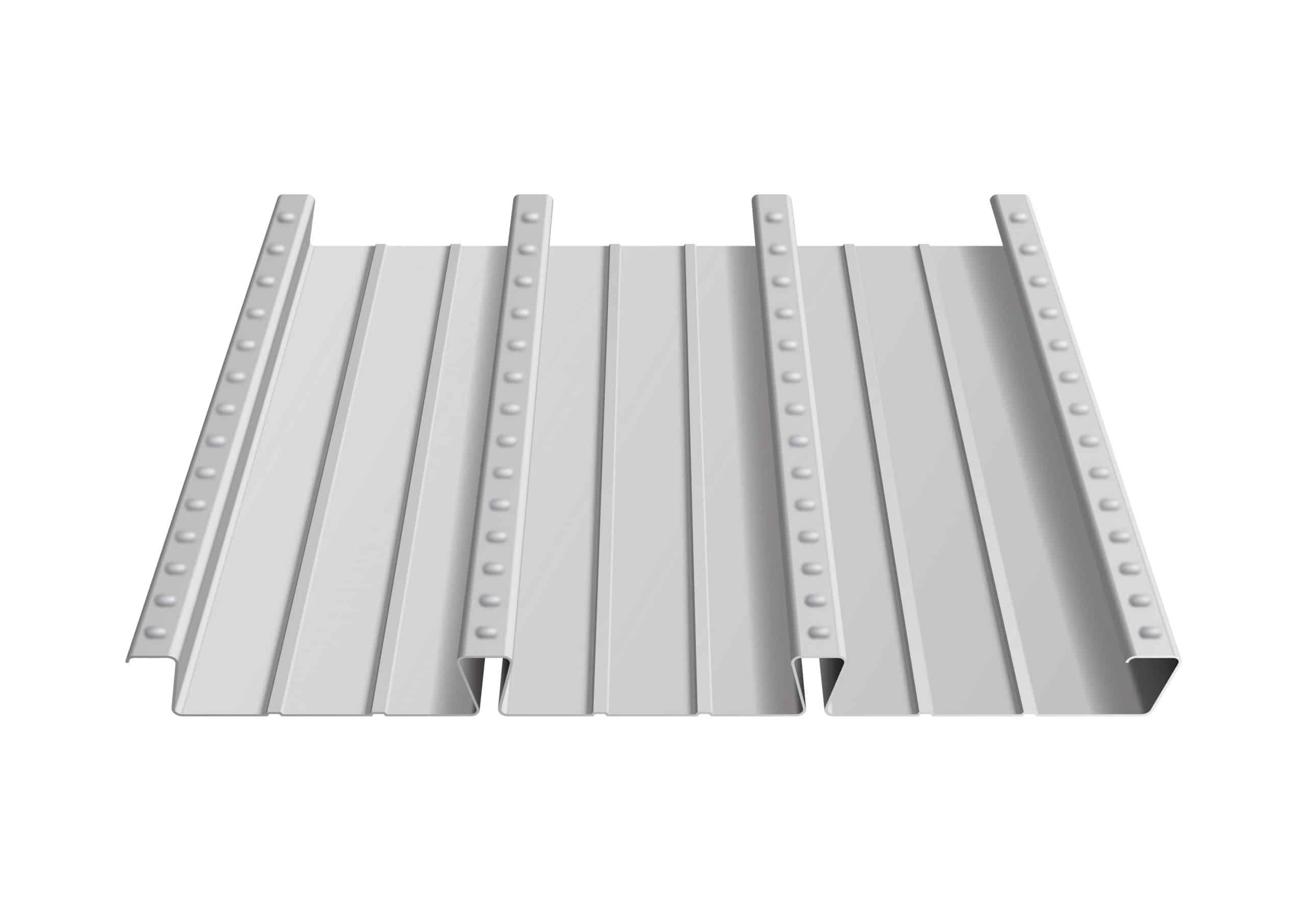

LYSAGHT® BONDEK® II

LYSAGHT® BONDEK® II

An advancement of the original name in steel formwork, BONDEK® II is an efficient, versatile and robust structural decking and ceiling system for concrete slabs in conventional as well as composite slab design.

  • Excellent spanning capacities for greater strength and less deflection.
  • Mechanical interlocking of concrete slab with reentrant rib and embossments work as bottom tensile reinforcement in composite slab design saving on concrete and reinforcement costs.
  • Features slip-free embossments and ribs at 200mm centres providing a safe work platform offering efficiency and speed of construction.
Nominal cover width:600mm
Rib Height:52mm
Galvanized Steel
Coating Mass:Z275
Thickness:0.75mm, 1.00mm, 1.2mm BMT
Steel Grade:G550, G500 (for 1.2mm)

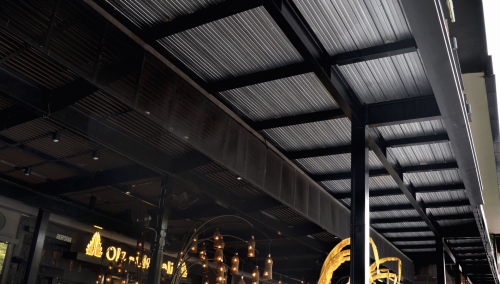

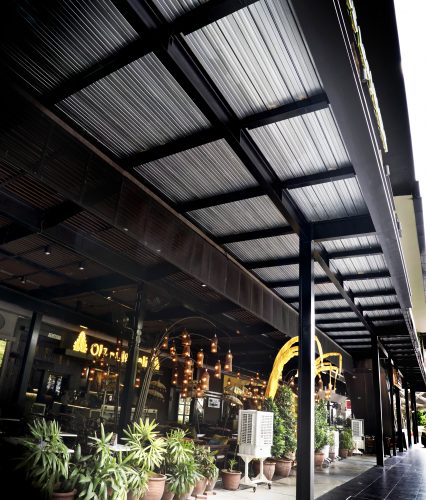

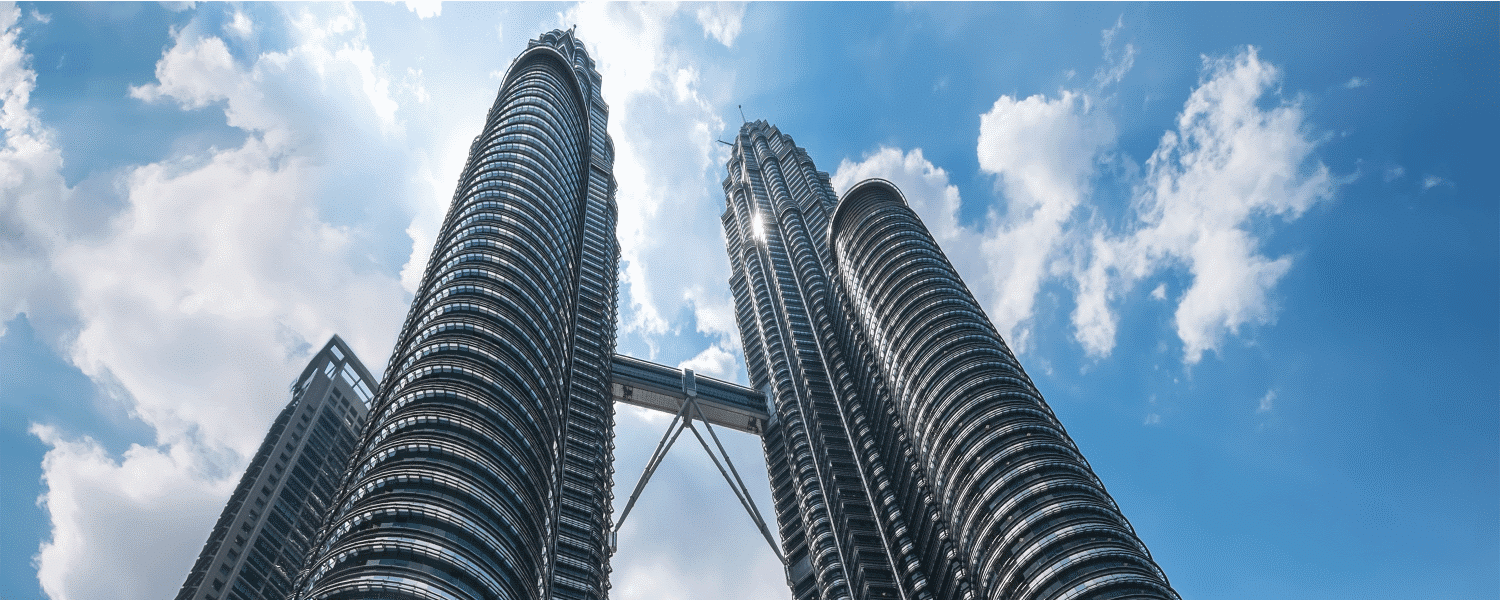

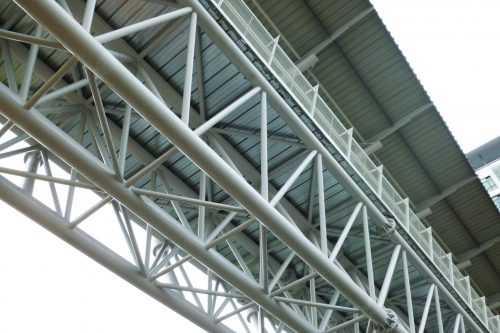

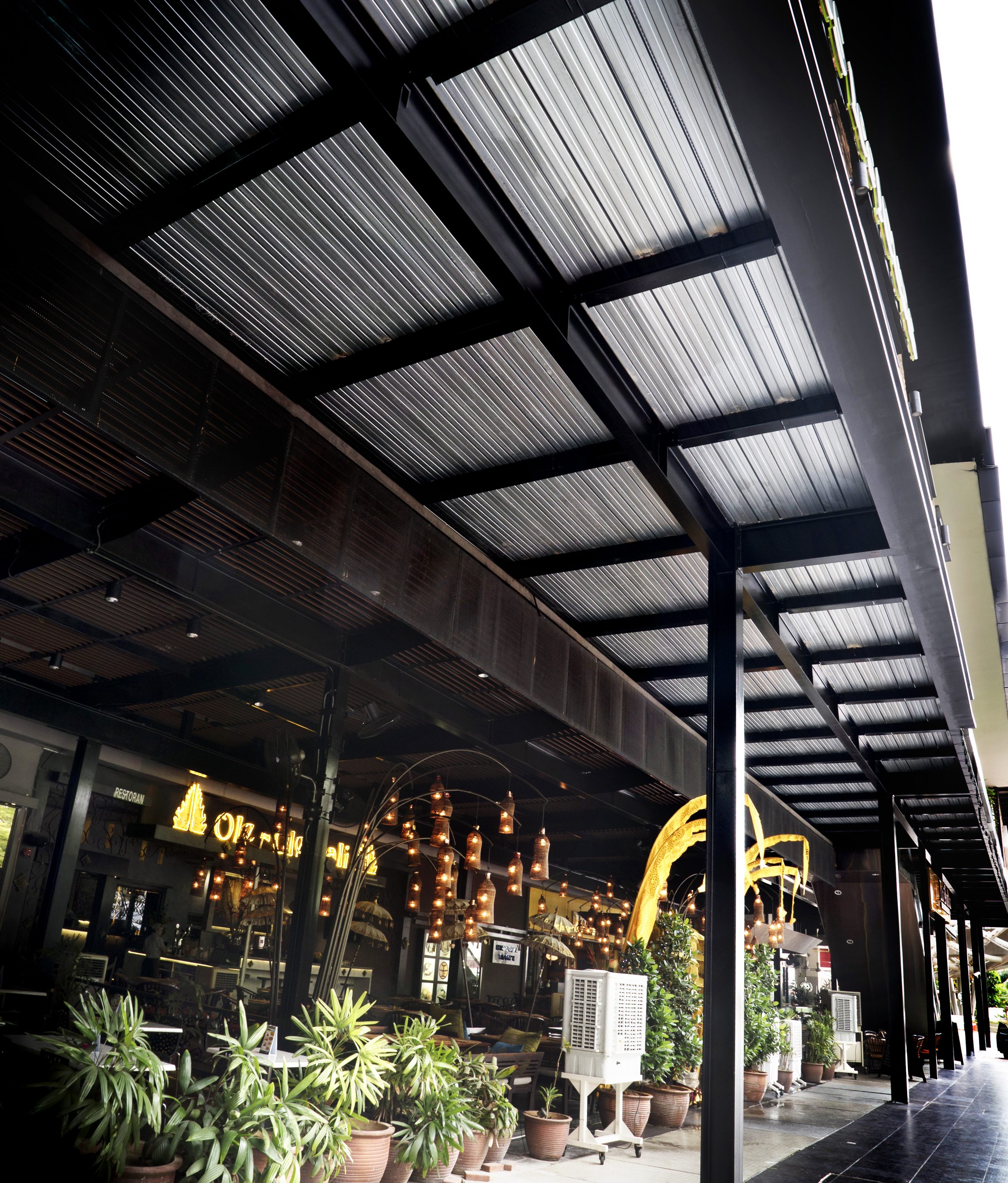

Product used in
