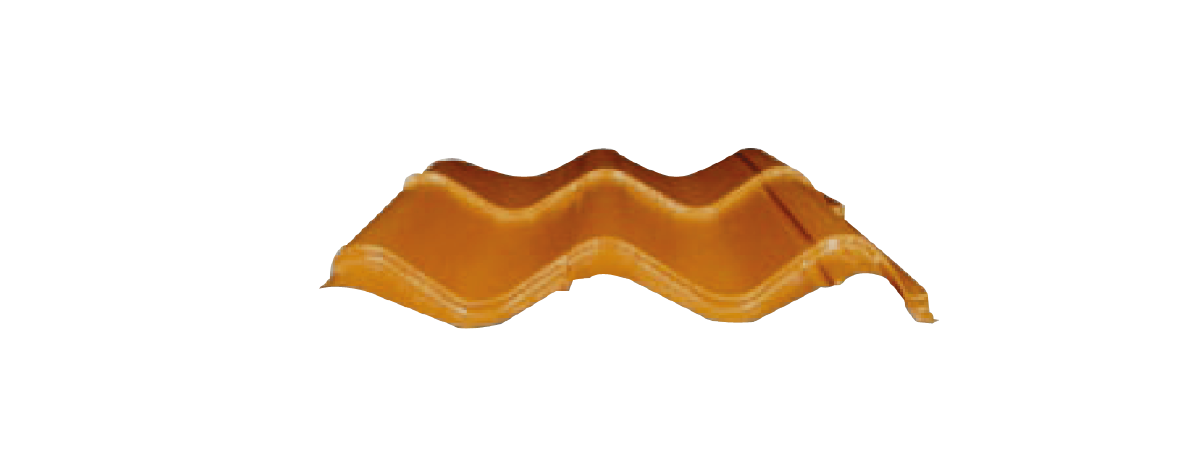

LYSAGHT® BORNEO TILE® looks as elegant as terracotta roof tiles. Combining elements of style, quality and efficiency, this inter-locking concealed-fix steel roof tile is a result of years of research and development.
While resembling the aesthetic appearance of terracotta roof tiles, LYSAGHT® BORNEO TILE® is significantly lighter at one-tenth the weight of clay and concrete roof tiles. The lighter roof weight transforms into savings on roof structures as compared to conventional clay and concrete roof tiles.
| Nominal cover width: | 762mm |
| Rib Height: | 16mm |
| Step Height: | 16mm |
| Module length: | 380mm |
| Minimum roof slope: | 18° |
| *Only available in Sabah | |
| Coating Mass: | AZ150 |
| Thickness: | 0.42mm BMT |
| Steel Grade: | G300 |
 |
Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.
