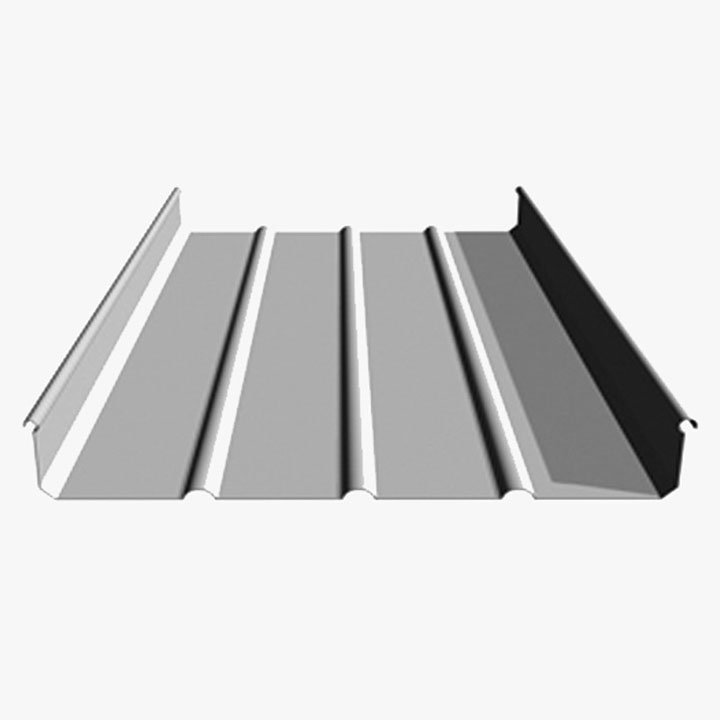

LYSAGHT® FLEX-LOK® roofing system requires no substrate as it is profiled with structural strength to function as a single skin roof to increase its ability in thermal resistance and sound transmission. LYSAGHT® FLEX-LOK® can be formed into a straight sheet, convex curved sheet or tapered sheet to meet increasingly sophisticated roof geometries demanded by designers today. As such, LYSAGHT® FLEX-LOK® is the architects, engineers and contractors’ ultimate choice for roofing solution.
| Nominal cover width: | std 300mm, 400mm, 500mm |
| Taper: | 240 - 400mm |
| Rib Height: | 65mm |
| Minimum roof slope: | 2.5° |
| Coating Mass: | AZ150 |
| Thickness: | 0.50mm, 0.75mm BMT |
| Steel Grade: | G300 |
| Aluminum: | 0.80 - 1.20mm |
Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.
Bintaro XChange Mall is the largest mall in the Bintaro Jaya area that carries the concept of the Lifestyle Center with an interactive green area.
Location Tanjuk Priok, North Jakarta Area 375.7 m2 Project Owner Government of Jakarta Architect Tiyok Prasetyoadi – PDW Architects Product COLORBOND® XRA Off White Profile LYSAGHT® FLEX-LOK®

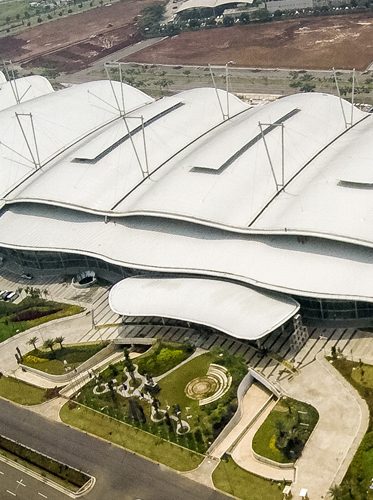

ICE is the biggest convention and exhibition center in Indonesia and has become an icon of Serpong with its success as a venue for major events.
